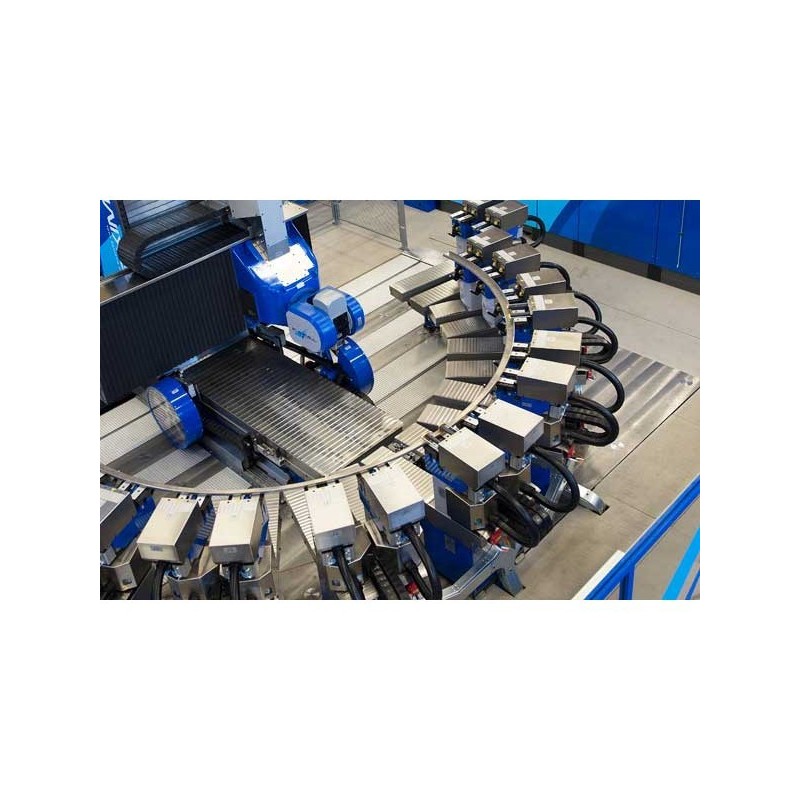

Milling Machine Center - Modig FlexiMill
FlexiMill is game changing technology with unparalleled uptime. This 6-axis machining center for aluminum and composite delivers enviable quality for a reasonable investment.
-
Politica de securitate (editeaza cu modulul Reasigurare pentru clienti)
-
Politica de livrare (editeaza cu modulul Reasigurare pentru clienti)
-
Politica de returnare (editeaza cu modulul Reasigurare pentru clienti)
FlexiMill is game changing technology with unparalleled uptime. This 6-axis machining center for aluminum and composite delivers enviable quality for a reasonable investment.
It is based on a cast iron bed which makes the machine moveable and only requires a simple and inexpensive foundation. FlexiMill can be installed with an open machine cover or in a completely sealed machining area. Unparalleled milling capacity for large, complex components.
Extraordinary milling capacity – your advantage!
FlexiMill 6-axis machine center adresses the fundamental conerns of our clients – effectivness, capacity and affordability. We know that delivering on these issues will help them gain competitive advantages which is why we are proud to present them with FlexiMill.
Strengths of the machine:
- 6 axis horizontal machine
- No special foundation
- Variety of CNC fixture to clamp the parts
- Working envelope X=6000mm Y=1500mm Z= 1900mm
- Made for machining in composite and aluminum
- Typical parts: Nacelle, panels, Frames, Assembled structural parts etc…
Cod produs: FlexiMill
Data sheet
- Tool Storage Capacity
- 15 [opt. 30]
- Tool Change Time
- 10 sec
- Controlled Axis
- X/Y/Z/A/C/U
- Travel X/Y/Z/U
- mm (in) 1,200/1,400/2,200/6,000 (47/55/86/236)
- Spindle Type / Speed
- min⁻¹ (rpm) HSK-63 / (0~30,000)
- Spindle Power
- kW (hp) 20 (26.8) or 45 (60)
- Rapid Traverse X/Y/Z
- mm/min (ipm) 60,000 (2,362)
- APC
- Available, Up to 1600mm
- Gantry Configuration
- (3) different choices based on workpiece matl.
- Machine Weight
- Kg (Lb) 17,000 (37,478)
FlexiMill is game changing technology with unparalleled uptime. This 6-axis machining center for aluminum and composite delivers enviable quality for a reasonable investment.
