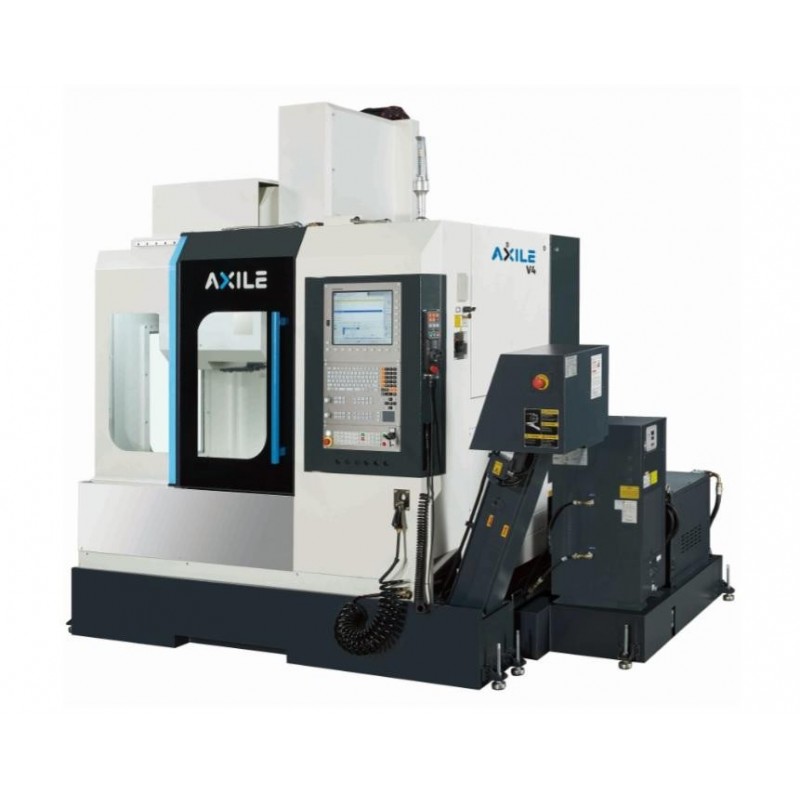

Centre de prelucrare verticale 3 axe - AXILE seria V
-
Politica de securitate (editeaza cu modulul Reasigurare pentru clienti)
-
Politica de livrare (editeaza cu modulul Reasigurare pentru clienti)
-
Politica de returnare (editeaza cu modulul Reasigurare pentru clienti)
The V series high-speed machining center provides Die / Mold solution for high precise machining capability is realized by high spindle speed, fast acceleration/deceleration, and precision contour feed control. Machine frame is analyzed with FEM system to ensure the optimum machine stability. V combines the maximum productivity with reasonable investment.
Specification:
| ITEM | UNIT | V4 | V5 | V6 | V7 |
| Table size | mm | 700X410 | 900X520 | 1,200X600 | 1,400X710 |
| Max. table load | kg | 250 | 600 | 800 | 1000 |
| X axis travel | mm | 600 | 800 | 1000 | 1200 |
| Y axis travel | mm | 400 | 500 | 600 | 730 |
| Z axis travel | mm | 450 | 500 | 600 | 650 |
| Spindle speed | rpm | 12000 | 12000 | 12000 | 12000 |
| Motor output | kW | 10 | 10 | 20 | 20 |
| Max. rapid feed X/Y/Z | m/min | 36 | 40 | 40 | 40 |
| Linear guideway | Ball type | Roller type | |||
| ATC capacity | Tool | 30 | 30 | 30 | 30 |
| Accuracy ( x/y/z axes) | |||||
| Positioning | mm | 0.01/300 | 0.01/300 | 0.01/300 | 0.01/300 |
| Repeatability | mm | 0.01 | 0.01 | 0.01 | 0.01 |
Standard accessories:
| 4th axis preparation | |
| Spindle oil cooler | |
| CTS - 20 BAR built in type | |
| Chip conveyor | |
| 4 bar wash down device | |
| Grease lubrication | |
| Linear scales on three axes | |
| Tool-tip Positioning Control (TPC) | |
| Spindle Vibration Supervision (SVS) | |
| Axial Accuracy Control (AAC) |
Optional accessories:
| 18K spindle 170mm (E-Spindle) Extra (V4/V5) | |
| 24K spindle 170mm (E-Spindle) Extra (V4/V5) | |
| 15K spindle 210mm (Kessler) (V6/V7) | |
| 20K spindle 210mm (Kessler) (V6/V7) |
