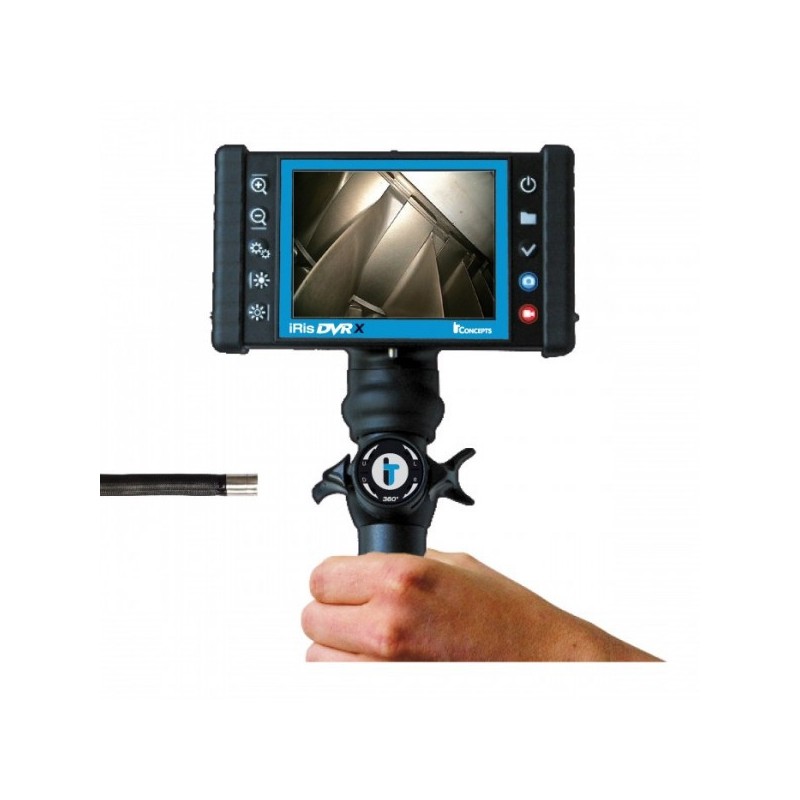

Endoscop portabil – ITConcepts iRis DVR X
- Display cu rezolutie ridicata 5 inch - Monitor cu posibilitate de rotire - Lentile interschimbabile pentru focalizare - Calitate excelenta a imaginii - Maner ergonomic - Sursa de lumina de mare putere cu LED-uri - Durata de viata extinsa a bateriei - Portabil - Adaptor cu rotatie 90 grade Operating unit
Display size:
5.0" (12.7 cm) TFT colour
Display resolution:
VGA (640 x 480 Pixel)
Operating system:
Real-time operating system, with on-screen menu
User interface:
Direct action keys / function keys / arrow keys
Languages:
English, German, Polish, French, Spanish, Italian, Turkish
Video interface:
Composite video-out (BNC)
Power supply, primary:
Rechargeable Li-ion battery (charger and battery are provided in delivery set)
Power supply, secondary:
12V adapter (optional accessory)
Documentation
Video format:
MPEG4 (.avi) (with time and date stamp)
Image format:
BMP (.bmp) (with time and date stamp)
Storage:
SDHC memory card up to 32 GB (FAT32) (8 GB is provided in delivery set)
Camera control
Image sensor:
Advanced chip on the tip image sensor
White balance:
Factory default or user defined
Image control
Zoom:
16 step digital zoom
Invert:
Horizontal and vertical image inversion
Brightness:
Adjustable
Contrast:
Adjustable
Colour:
Adjustable
Text annotation:
Built-in text overlay generator
Probe
Diameter:
Working length:
4.9 - 13.1 ft (1.5 - 4.0 m)
4.9 -13.1 ft (1.5 - 7.5 m)
Articulation (bending neck):
4-way / 360° control
4-way / 360° control
Integrated objective lens:
Side view tip adapter:
Braid:
Multi-layer tungsten braid on PU jacket
Illumination
Type:
High-power LED (4 mm with fiber optics / 6 mm - LED on the tip)
Illumination control:
3 steps
Colour temperature:
approx. 6500 k
Average lamp lifetime:
approx. 5000 h
Luminous:
NTSC : 30 lm
NTSC : 20 lm
Construction
Ergonomics:
± 90° rotatable display unit, alt. ±90° rotatable scope handle
System weight:
1,35 Kg
Dimensions:
180 mm x 105 mm x 45 mm
Housing:
Rugged PU, with integrated rubber shock caps
Operating environment
Tip operating temperature:
-13°F to 176°F (-25°C to +80°C)
System operating temperature:
-13°F to 115°F (-25°C to +46°C)
Storage temperature:
-13°F to 140°F (-25°C to +60°C)
Relative humidity:
95 % max. - non condensing
Waterproof:
Probe and distal end up to 14.7 psi (1 bar - 10.2 m H2 O)
Resistance:
Probe and distal end to oils and saline (5 %)
Manufacturer's Data
Country of Origin:
Germany
